MIL-P-18526A(SH)
3.3.15.2 Painting of external surfaces of nonferrous parts of pumps will not be required.
3.3.16 Identification plates.
3.3.16.1 Identification plates shall be furnished on each pump. Plates shall be type
A or B in accordance with MIL-P-15024 and MIL-P-15024/5, except that identification plates
of plastic or aluminum are not acceptable.
3.3.16.2 Identification plates shall be secured to equipment with corrosion-resistant
metallic screws or rivets.
3.3.16.3 Pump identification plates shall contain data as follows:
Manufacturer's name.
(a)
Manufacturer's model style, class, and size.
(b)
Service application.
(c)
Manufacturer's serial number.
(d)
Salient design characteristics:
(e)
(1) Capacity in gallons per minute (gal/rein).
(2) Discharge pressure.
Suction lift.
(3)
(4)
Speed of shaft in r/rein.
(5) Brake horsepower (hp).
(6) Test pressure.
(7) Viscosity range (operating).
(f)
Contract number (and item number of multiple unit orders).
National stock number (NSN).
(9)
Section for Defense Contract Administration Service (DCAS) stamp.
(h)
NAVSHIPS technical manual number.
(i)
3.3.16.4 Each driving unit and each accessory unit shall have an identification plate
in accordance with the applicable equipment specification.
3.4 Materials.

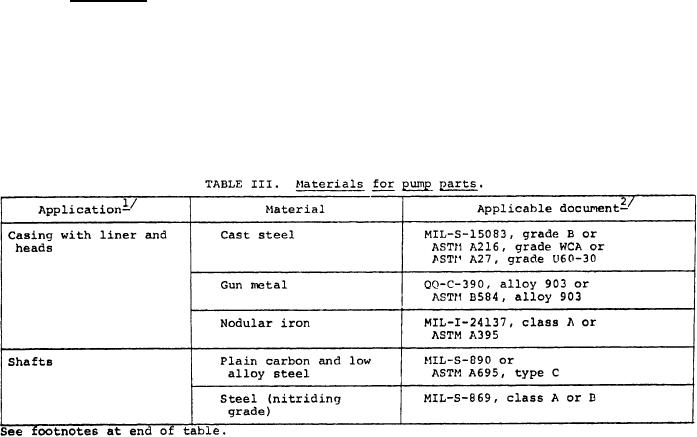

3.4.1 Materials of the pump shall conform to the materials specified in table III.
However, this specification is not intended to be restrictive provided proposed alternate
materials will give equal or better service than the materials specified. Components of
the pump for which specific materials are not specified shall be materials compatible for
the service intended. Materials which can be sensitized and are subjected to heat treatment
in the sensitization range during fabrication shall be capable of passing the intergranular
corrosion tests of the base material specifications. Particular attention should be given to
avoid sensitization of materials during hard facing, stress relieving, or repair welding.
Use of cadmium-plated parts and fasteners, including washers, is prohibited. Items and parts
used in the pump shall be new and unused. Reclaimed material shall be used to the maximum
extent practicable in producing such items and parts provided that the pump and items/parts
conform to the requirements of this specification.
9
